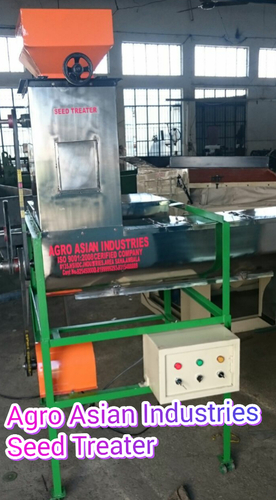

Product Description

Seed Treater Power : 1 HP

Seed Treater Salient Features

•  Compact easy to install.
• Parts in contact with chemical are made of stainless steel for easy clean up and long life.
• For dosing of slurry, dispensing pump has been provided instead of chain sprocket and buckets system.
• For hopper with regulated gate.
• Seed weighing mechanism and synchronised seed dump pan.
• Variable dosing arrangement to suit seed treatment for all kinds of seeds.
• Gentle handling of seeds combined with efficient and effective method of seed treatment.
• Few moving parts, less mechanical up keep.
• Controlled agitation in slurry tank keeps the slurry solution/chemical in uniform suspension.
• Controlled agitation in slurry tank keeps the slurry solution/chemical in uniform suspension.
• Dosing of chemical is fully automatic.
• Blending chamber is a slow rotating drum.
• Optional Accessories Available
• Air Trunk, Surge Bin, Feeding Elevator.

Operation
AGRO ASIAN INDUSTRIES  ST-4-RD seed treters use the weight of seed to operate the seed and slurry measuring system. The amount of seed measured is controlled by placement of a counter weight while the amount of slurry measured at each trip of the weighpan is determined by the size of the cups used in the metering pan.

Each time the weighpan trips, seed flows to the slow rotating cylinder. At the same time slurry is delivered on the top of the seed slurry and seed are then thoroughly mixed in the cylinder and finally treated seed is discharged from the cylinder through 2 way discharge spout.

The seed dressing is pumped with the help of vertically submersible pump into the chemical metering pan and fed continuously through dosing cups which are easily interchangeable for variable dosing.

Product Details:

• Capacity: 3 ton per hour
• Material: Steel
• Electric load: 1.5- 2 H.P.
